Arc plate electric separator

Arc plate electric separator

Get a quotetechnical advicetechnical advice

24-hour phone/WhatsApp24-hour phone/WhatsApp:+8619870423316

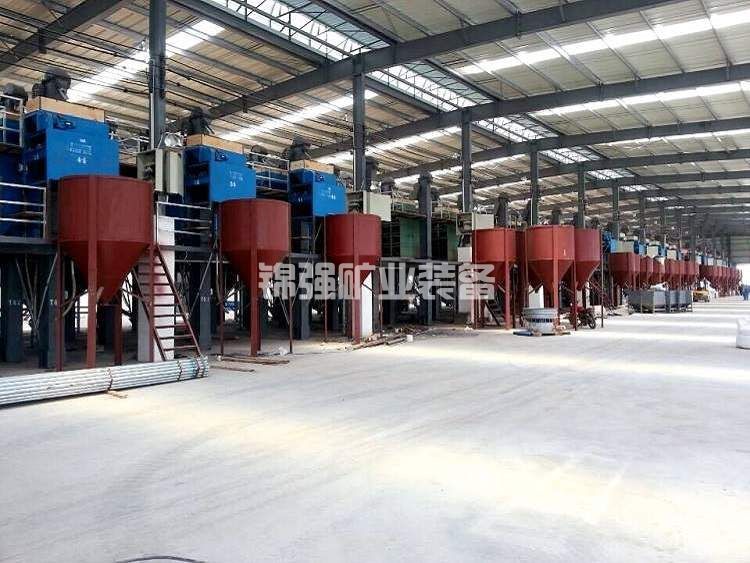

Arc plate electric separator equipment image:




Arc plate electric separator equipment details:

1、 Overview of Arc Plate Machine

Plate type electric separator (arc plate electric separator) is mainly used to select a small amount of metal conductor minerals from non-metallic materials, especially suitable for the separation and purification of sand ore. The working principle of arc plate machine and plate type electric separator is that materials fall from the hopper by gravity onto the conductive plate. During the sliding process, conductive particles deviate from the original falling trajectory and are separated under the electrostatic attraction of the elliptical electrode on the upper side, while non conductive particles still slide along the conductive plate.

2、 Arcing machine classification

The arc plate electric separator manufacturer's equipment is a type of beneficiation equipment that separates different electrical ore particles, and there are many types of arc plate models. Arcing machines are mainly classified according to the following characteristics:

1. There are three types of arc plate electric separator based on the characteristics of the electric field: (1) electrostatic separator, (2) corona separator, and (3) composite electric field separator.

2. There are three types of arc plate electric separators based on the charging method of ore particles: (1) contact charged electric separators, (2) friction charged electric separators, and (3) corona charged electric separators.

3. Arc plate electric separator can be divided into drum type (or roller type or drum type), box type, tube type, and plate type according to its structural characteristics.

3、 Application of Arc Plate Machine

The arc plate electric separator is mainly used to select conductive minerals with low content from a large number of non-conductive products. At present, arc plate separators are widely used in coastal placers in Australia, that is, a small amount of Rutile and Ilmenite are separated from zircon coarse concentrate, and many of these electric separators are often connected in series to form one or several series of continuous separation. Some factories used to use the American Carpeo high-voltage electric separator, but due to the unsatisfactory sorting effect, they later used the arc plate electric separator for sorting, which greatly improved the beneficiation effect.

Arc plate electric separator Technical Parameter:
